Lights

To get road approval there are extensive legal requirements for the lighting of your vehicle or trailer. Size, color, luminosirty value or reflection value depend on various criteria.

We offer lights using state of the art LED technology the fit your needs also in small quantities. Indicator control function, licence plate illumination, waterproofe connectors as well as protective covers are available.

prewiew

AGRI

12V, 25W indicator-, stop- and rear position light with indicator control function.

BBS16LEDA

prewiew

AGRI

12V, 25,6W indicator-, stop- and rear position light including licence plate illumination and indicator control function.

BBSK16LEDA

prewiew

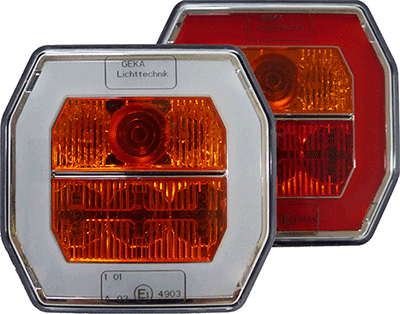

OCTAGON

12V, 24W indicator-, stop- and rear position light with indicator control function.

BBS17LEDA

prewiew

OCTAGON

12V, 26W indicator-, stop- and rear position light including licence plate illumination and indicator control function.

BBSK17LEDA

prewiew

OCTAGON

12V, 23W indicator- and front position light with indicator control function.

BP17LEDA

prewiew

POSITIONING LIGHT

Front position light, Multi-Voltage 9-30V, 0,3W at 12V and 0,6W at 24V

PL16

prewiew

POSITIONING LIGHT

Position light 104x36mm, flat, Multi-Voltage 9-30V, 0,45W at 12V and 1W at 24V

PL17

prewiew

POSITIONING LIGHT

Position light 104x36mm, curved, Multi-Voltage 9-30V, 0,45W at 12V and 1W at 24V

PL17/1

prewiew

POSITIONING LIGHT

Position light 104x36mm, flat, Multi-Voltage 9-30V, 0,45W at 12V and 1W at 24V

SML17

prewiew

POSITIONING LIGHT

Position light 104x36mm, curved, Multi-Voltage 9-30V, 0,45W at 12V and 1W at 24V

SML17/1

prewiew

ANGLE BRACKET

Available for all position lights.

SML17WH

prewiew

REAR LIGHT SET

LED rear light set including "AGRI" rear lights (BBSK16LEDA) with 0,5m cable and GEKA connectors IP67. Main cable 2x 4-pin connector 7m long, 7-pin plug. Integrated indicator control function.

EL16LED

prewiew

REAR LIGHT SET

LED rear light set including "OCTAGON" rear lights (BBSK17LEDA) with each 0,5m cable and GEKA connectors IP67. Main cable 2x 4-pin connector 7m long, 7-pin plug. Integrated indicator control function.

EL17LED

prewiew

REAR LIGHT

95mm, 9-33V, 3W, IP67

RL95LED

prewiew

FOG LIGHT

95mm, 9-33V, 4W, IP67

NL95LED

prewiew

INDICATOR AND POSITIONING LIGHT

95mm, 9-33V, 3W, IP67. Indicator module necessary.

BP95LED

prewiew

INDICATOR AND POSITIONING LIGHT

95mm, 9-33V, 3W, IP67. Indicator module necessary.

BBS148LED

prewiew

POSITIONING LIGHT 60°

weiß-rot, 12V oder 24V, 1W

SPL19LED

prewiew

POSITIONING LIGHT 90°

weiß-rot, 12V oder 24V, 1W

SPL20LED

prewiew

2 FUNCTION LIGHT

SPL110

prewiew

2 FUNCTION LIGHT

SPLH110

prewiew

3 FUNCTION LIGHT

SPSML110

prewiew

3 FUNCTION LIGHT

SPSMLH110

prewiew

FLASHING LIGHT 150 MAXI

Multi-Voltage 10V up to 30V. -40°C up to +65°C, 7,5W up to 11W, 4 blinking pattern. Polarity reset protection, 128 flashes, IP67, ECE verified, EMV tested. Clip-on

BLF150

prewiew

FLASHING LIGHT 150 MAXI

Multi-Voltage 10V up to 30V. -40°C up to +65°C, 7,5W up to 11W, 4 blinking pattern. Polarity reset protection, 128 flashes, IP67, ECE verified, EMV tested. Magnetic base

BLM150

prewiew

FLASHING LIGHT 150 MAXI

Multi-Voltage 10V up to 30V. -40°C up to +65°C, 7,5W up to 11W, 4 blinking pattern. Polarity reset protection, 128 flashes, IP67, ECE verified, EMV tested. Screw-on

BLS150

prewiew

FLASHING LIGHT 76 MINI

Multi-Voltage 10V up to 30V. -25°C up to +65°C, 12W, 3x flash. Polarity reset protection, IP67, ECE verified, EMV tested. Clip-on

BLF76

prewiew

FLASHING LIGHT 76 MINI

Multi-Voltage 10V up to 30V. -25°C up to +65°C, 12W, 3x flash. Polarity reset protection, IP67, ECE verified, EMV tested. Screw-on

BLS76

prewiew

LED ROUNDED LIGHTS

Multi-Voltage 12V up to 24V. 12 LEDs, 36W, aluminium casing, light panel PC, rotation speed 125 +/- 4 rpm, IP56. Clip-on

RLALED

prewiew

LED ROUNDED LIGHTS

Multi-Voltage 12V up to 24V. 12 LEDs, 36W, aluminium casing, light panel PC, rotation speed 125 +/- 4 rpm, IP56. Magnetic base

RLMLED

prewiew

LED ROUNDED LIGHTS

Multi-Voltage 12V up to 24V. 12 LEDs, 36W, aluminium casing, light panel PC, rotation speed 125 +/- 4 rpm, IP56. Screw-on

RLSLED

prewiew

WORK LAMP

90x90x50cm, 12V bis 30V, rectangular. 9 LEDs a 3W, IP67.

ASLED4

prewiew

WORK LAMP

90x90x49cm, 12V bis 30V, round. 9 LEDs a 3W, IP67.

ASLED5


We are looking forward to hearing about your ideas and working on your customized lighting solution.
